Palletizer

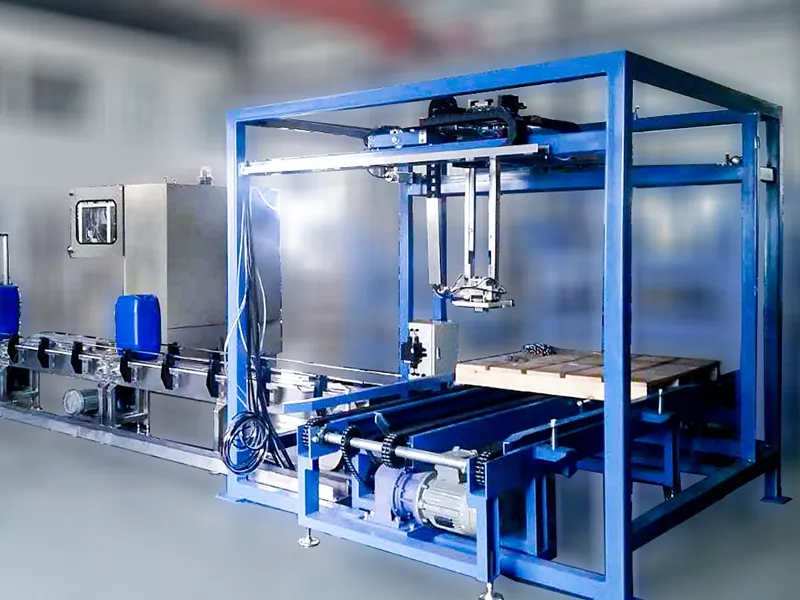

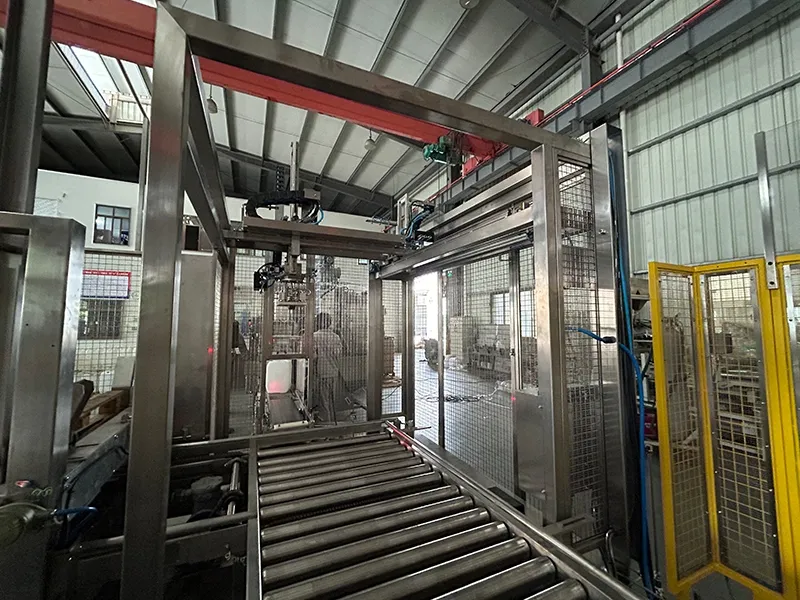

The Cartesian palletizer performs positioning through X-axis and Y-axis linear movement, with Z-axis vertical lowering for container placement. It is suitable for both standard and explosion-proof production environments.
This type of palletizer is ideal for containers with similar shapes and dimensions and can be manufactured in carbon steel or stainless steel according to application requirements.
Mechanical palletizers are typically divided into two standard categories: 25L container palletizer, 200L drum palletizer. Depending on production capacity requirements, different gripper types and quantities can be configured.
Specifications
- Palletizer type: Cartesian gantry palletizing
- Applicable containers: 10-40L drum, 200L drum
- Container material: Steel/plastic
- Multi-type container handling: Yes (minimal variation in shape and size)
- Palletizing speed: 400 drums/hour (small drum)
160 drums/hour (large drum) - Operating temperature: -10℃ to +40℃
- Power supply: 380V (-15% to +10%)
- Air supply: 0.4-0.6MPa
- ATEX/EX: Applicable

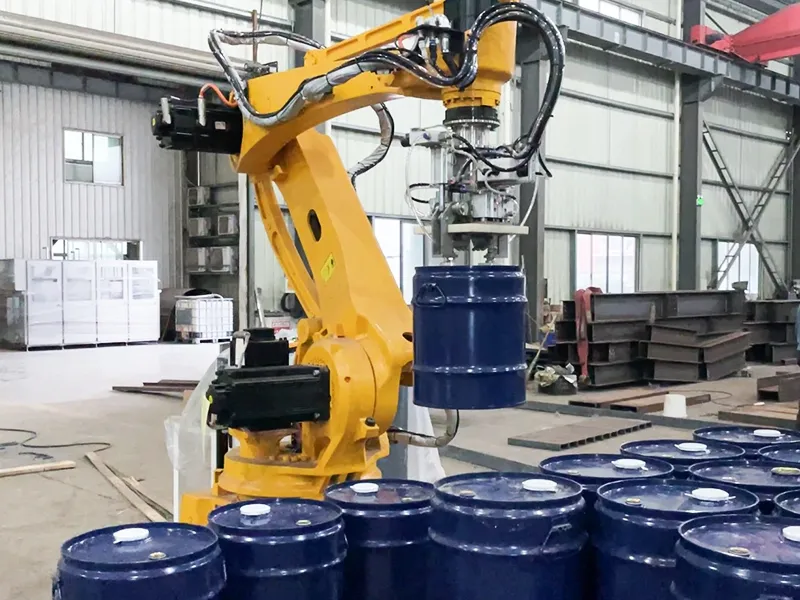

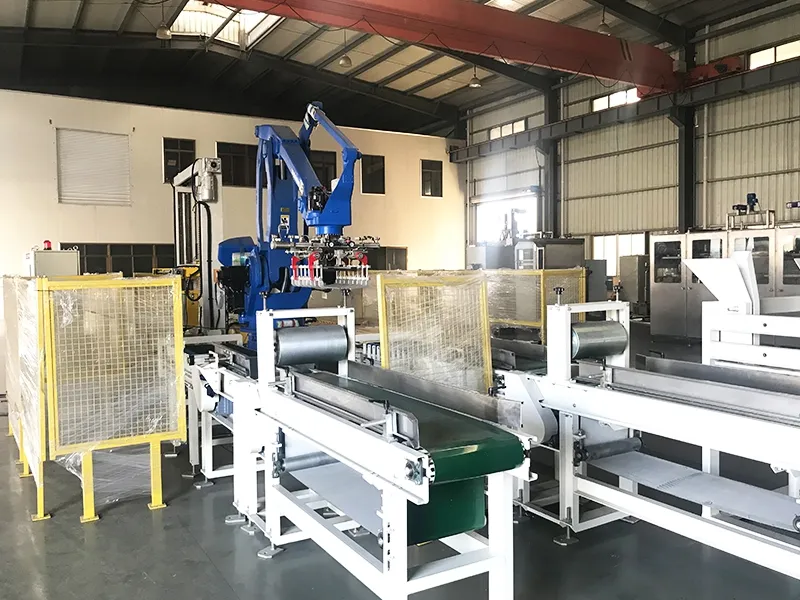

The robotic palletizer uses industrial robot positioning for pallet stacking operations. It is suitable for standard production environments and supports multiple container sizes and various stacking patterns.
The robot offers flexible motion and can place containers at any position and orientation within the pallet area. Different grippers can be integrated onto the robot arm to accommodate various container types.
Whether using a Cartesian palletizer or a robotic palletizer, and whether handling 25L containers or 200L drums, the palletizer can be equipped with an automatic pallet magazine.
The pallet magazine can store 10-15 pallets and automatically supply pallets to the line, significantly improving overall production line automation.
Specifications
- Palletizer type: Robotic palletizing
- Applicable containers: 5-40L drum, 10-50kg bag
- Container material: Steel/plastic drum, paper/PE bag
- Multi-type container handling: Yes (significant variation in shape and size)
- Palletizing speed: Drum: 600 drums/hour
Paper valve bag/PE woven bag: 1300 bags/hour - Operating temperature: -10℃ to +40℃
- Power supply: 380V (-15% to +10%)
- Air supply: 0.4-0.6MPa
- ATEX/EX: Not applicable

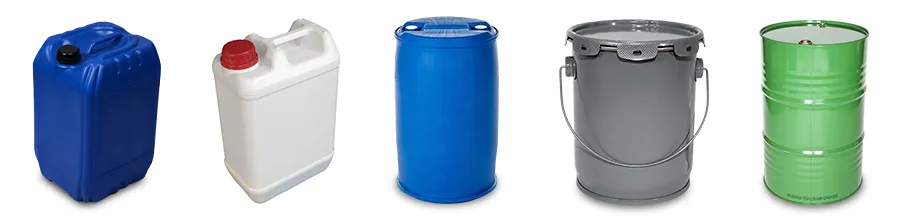

Applicable Container Types
Features
- Wide applicability for multiple container sizes and formats.
- High throughput while ensuring consistent and stable palletizing patterns.
- Suitable for high-volume production environments with multiple product types and higher safety risk levels.
Applicable Industries
Chemical, petrochemical, construction materials, grain processing, pharmaceutical, electronics, and food industries.
