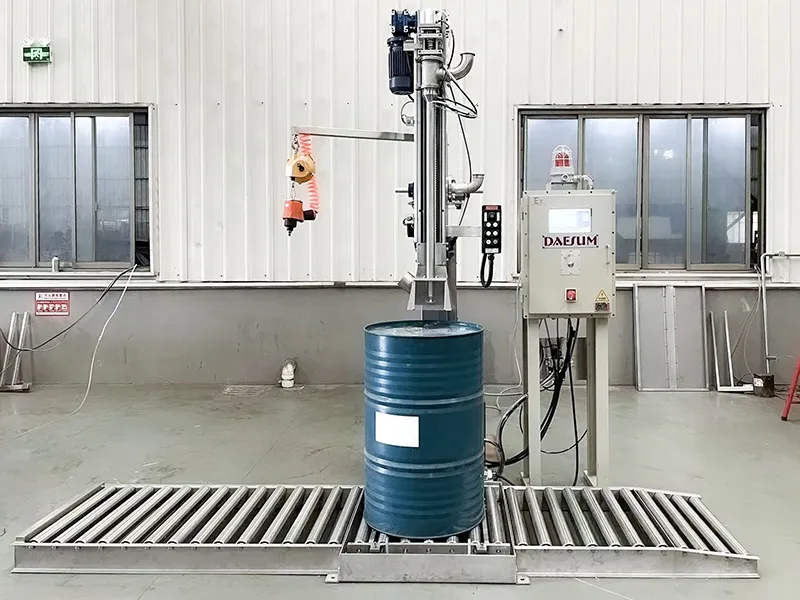

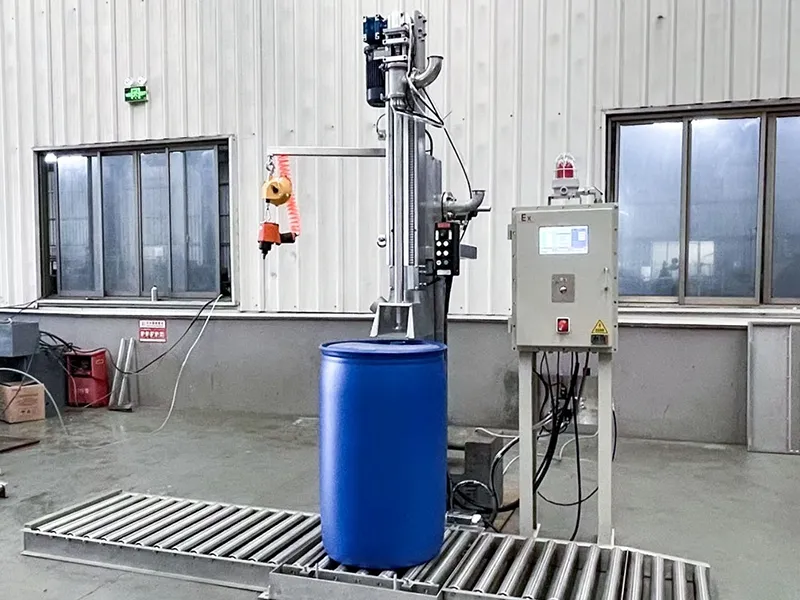

Semi-Automatic Drum Filling Machine
- Filling range 60-220L
- Filling speed 35-40 drums/hour
The semi-automatic drum filling machine is engineered to facilitate a workflow that includes manual drum loading, manual capping, manual drum alignment, automatic quantitative filling, and manual discharge.

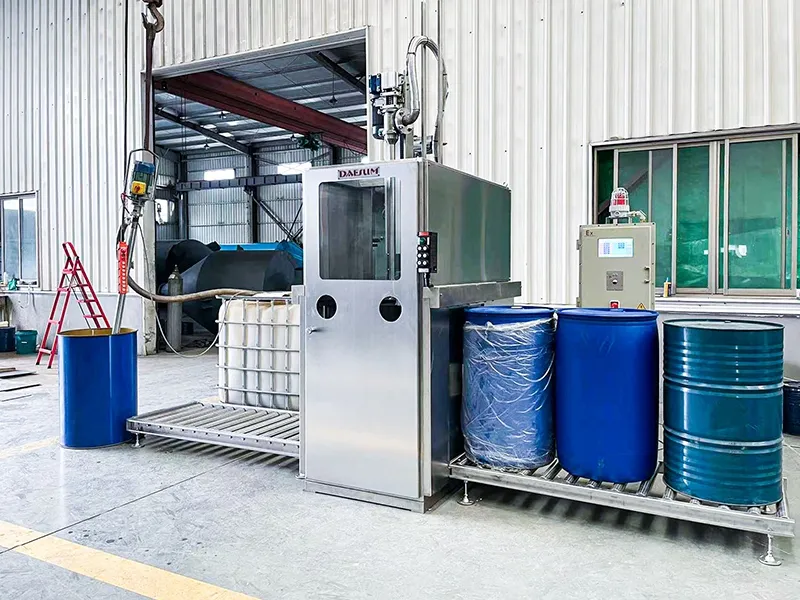

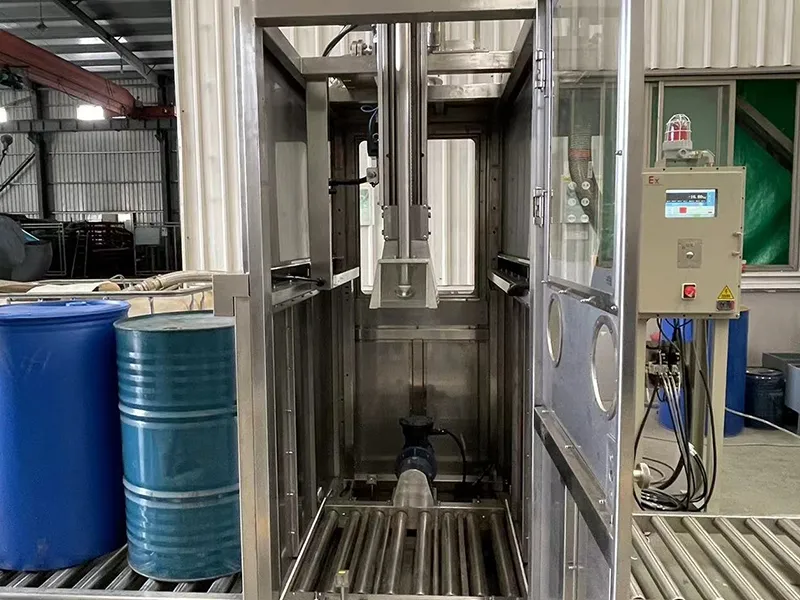

The semi-automatic machine features short infeed and outfeed roller conveyors. The infeed side is typically equipped with a free roller conveyor, while the outfeed side is equipped with a powered roller conveyor to assist drum movement. Optional configurations include a filling enclosure, explosion-proof motor, ventilation and exhaust systems, and manual lid pressing or crimping devices.
- Filling speed: 35-40 drums/hour (depending on material properties, supply pressure and operator proficiency)
- Number of filling stations: 1
- Max. weighing capacity: 300kg
- Scale interval: 100g
- Filling method: gravimetric filling
- Filling accuracy: ±0.2%
- Filling range: 60-220L
- Conveyor type: linear conveyor
- Operating temperature: -10℃ to 40℃
- Power supply: 380V, 50Hz (or customized)
- Air supply: 0.4-0.6MPa
- Explosion-proof configuration is optional for operation in hazardous areas and explosive environments
- Automatic feeding: No
- Automatic bunghole positioning: No
- Automatic cap loosening: No
- Automatic quantitative filling: Yes
- Automatic capping/tightening: No
- Automatic labeling: No
- Automatic palletizing/wrapping: No
- Flammable & explosive: Applicable
- Toxic & hazardous: Applicable
- High viscosity: Applicable
- Highly corrosive: Applicable
- Volatile: Applicable
- Easily solidifying: Applicable
- Conveyor system: Optional
- Empty container store warehouse: Optional
- Cartesian palletizer (gantry palletizer): Optional
- Labeling machine: Optional
- Cap organizing & capping machine: Optional
- Stretch wrapping machine: Optional
- Low equipment investment with moderate capital requirements.
- Minimal roller conveyor configuration, compact footprint, and high flexibility.

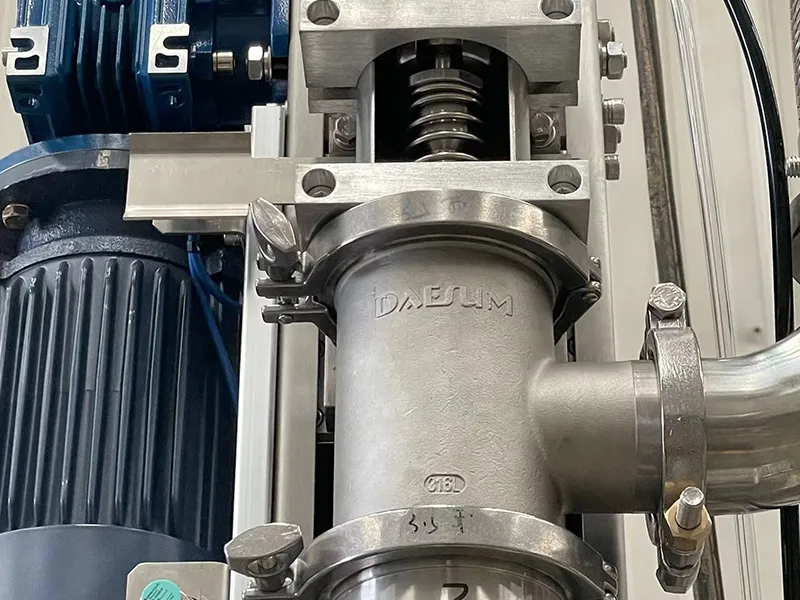

- Interchangeable filling lance design, allowing one product per lance or multiple lances for multiple products.
- Equipped with forklift-access brackets for convenient relocation.
- Suitable for low annual production volumes with multiple product types.

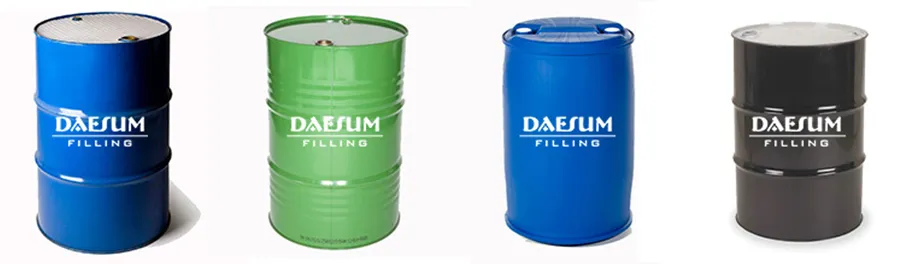

The drum filling machine is suitable for quantitative filling of lubricants, antifreeze, adhesives, cleaning liquids, detergents, and various chemical materials. It can meet filling requirements for high-viscosity products, toxic and hazardous substances, as well as flammable and explosive materials in special industrial environments.
