Drum Filling Line

The drum filling line is designed to achieve a fully automated production process, including empty drum storage, automatic drum discharge, automatic empty drum labeling, automatic alignment and cap loosening, automatic quantitative filling, automatic alignment and capping, automatic outer lid pressing, automatic pallet discharge, automatic palletizing, automatic stretch wrapping or hooding, automatic strapping, and finished pallet conveying out of the production workshop.

Leave a Message
Specifications
  • Drum store capacity: customizable (400-1000 or more 200L drums, supporting multiple drum types)
  • Filling speed: 35-40 containers/hour (single station), each filling line can be configured with 1-4 stations, each drum storage system can support multiple filling lines simultaneously
  • Palletizing speed: more than 160 drums/hour
  • Filling method: gravimetric filling
  • Filling accuracy: better than ±0.2%
  • Conveyor type: linear conveyor
  • Filling range: 60-220L (plastic/steel drum)
  • Operating temperature: -10℃ to 40℃
  • Power supply: 380V, 50Hz (or customized)
  • Air supply: 0.4-0.6MPa
  • ATEX/EX: applicable
  • Equipment dimensions: length is customized according to site layout and empty container buffer requirements
Features
  • The drum filling line can accommodate different pallets and drums. Format changeover is achieved by selecting the corresponding recipe via the touch screen.
  • The drum filling line integrates world-class electrical components to ensure reliability, featuring Siemens PLC and HMI systems, Schneider low-voltage switchgear, Omron or Sick photoelectric sensors, and Pepperl+Fuchs (P+F) proximity switches.
  • Multiple safety measures are integrated throughout the drum filling line, including emergency stop buttons, safety switches, interlocking systems, and safety fencing to ensure operation within designated safe zones.
Main Equipment

Automatic empty drum warehouse, 200L automatic drum filling machine, automatic drum palletizer, automatic stretch wrapper, labeling machine.

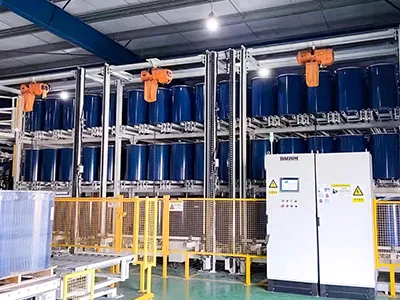

  • Automatic empty drum warehouseAutomatic empty drum warehouse

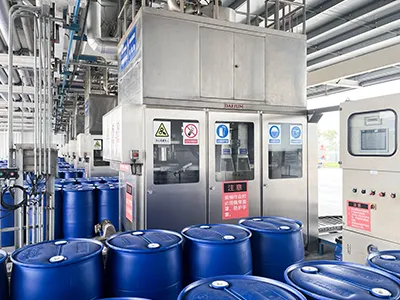

  • 200L automatic drum filling machine200L automatic drum filling machine

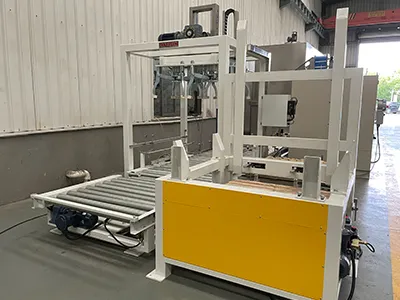

  • Pallet storagePallet storage

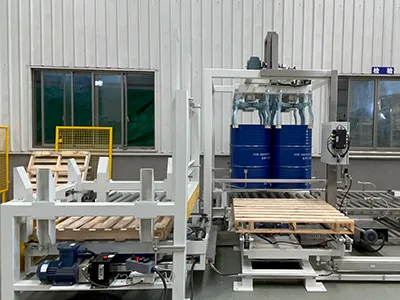

  • Drum palletizerDrum palletizer
Recommended Applications

The drum filling line is suitable for industries with high production volumes, limited labor availability, strict safety standards, demanding environmental protection requirements, and high performance expectations.

Typical applications include fine chemical industries and environments handling high-viscosity materials, toxic and hazardous substances, and flammable or explosive products.

Automatic empty drum warehouse
