Pail Filling Line

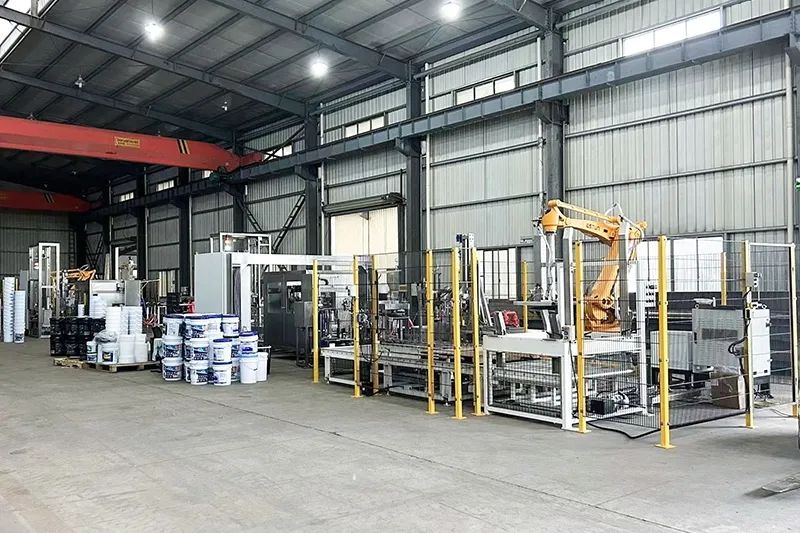

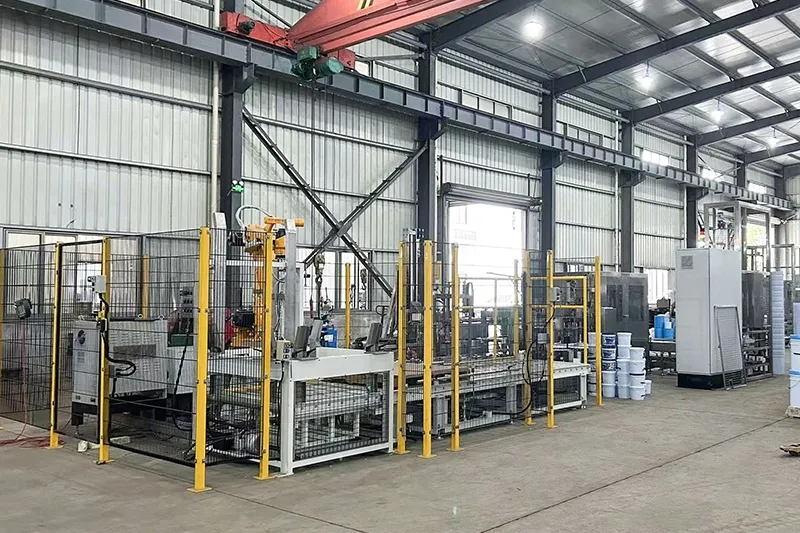

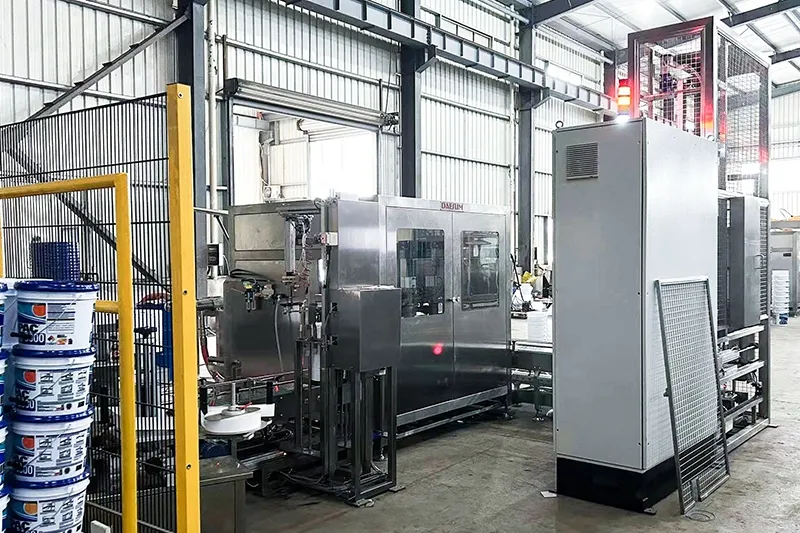

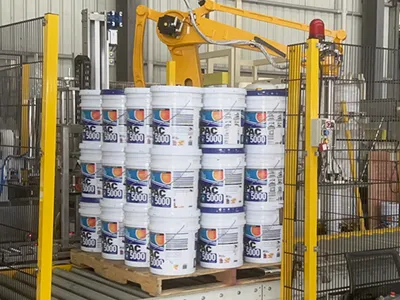

The pail filling line is designed to achieve a fully automated production process, including stacked empty pail loading, automatic pail separation, automatic quantitative filling, automatic lid placement, automatic lid pressing, automatic labeling, automatic stacking, automatic pallet discharge, automatic stretch wrapping or hooding, automatic strapping, and finished pallet conveying out of the production workshop.

Leave a Message
Specifications
  • Filling speed: 400-600 containers/hour (depending on material properties, supply pressure and container volume)
  • Filling method: gravimetric filling
  • Filling accuracy: better than ±0.2% (optimal accuracy 50-200g depending on material properties)
  • Conveyor type: linear conveyor or triple-station conveyor
  • Filling range: 5-30L (open-top pails)
  • Operating temperature: -10℃ to 40℃
  • Power supply: 380V, 50Hz (or customized)
  • Air supply: 0.4-0.6MPa
  • ATEX/EX: applicable
  • Equipment dimensions: length is customized according to site layout and empty container buffer requirements
Features
  • The pail filling line can accommodate pails of different heights and sizes. Format changeover is achieved by selecting the corresponding recipe via the touch screen and making minor adjustments at specific stations.
  • The pail filling line integrates world-class electrical components to ensure reliability, featuring Siemens PLC and HMI systems, Schneider low-voltage switchgear, Omron or Sick photoelectric sensors, and Pepperl+Fuchs (P+F) proximity switches.
  • Multiple safety measures are integrated throughout the system, including emergency stop buttons, safety switches, safety light curtains, interlocking systems, and safety fencing to ensure operation within designated safe zones.
Main Equipment

Automatic empty pail separator, automatic pail filling machine, automatic lid placing and pressing machine, automatic stacking system, automatic palletizer or palletizing robot, stretch wrapping machine, labeling machine, auxiliary systems

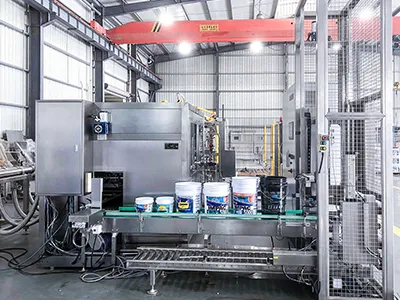

  • Empty pail separatorEmpty pail separator

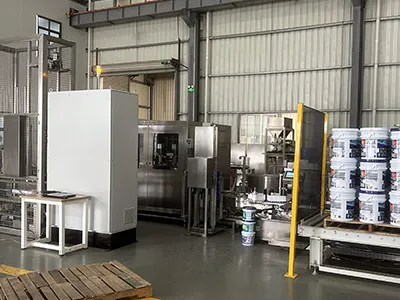

  • Automatic pail filling machineAutomatic pail filling machine

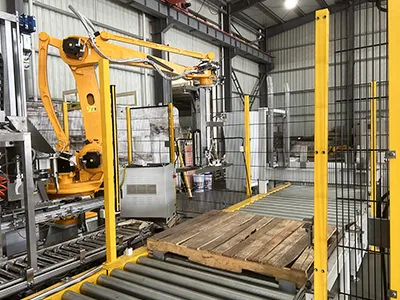

  • PalletizerPalletizer

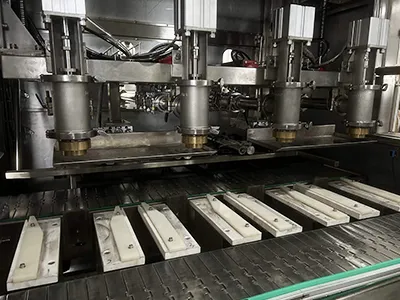

  • Filling LanceFilling Lance
Recommended Applications

The pail filling line is suitable for industries with high production volumes, reduced labor requirements, strict safety standards, demanding environmental protection requirements, and high performance expectations.

It is widely used in the building coatings industry, including waterproof coatings, exterior wall coatings, paints, and similar products.
