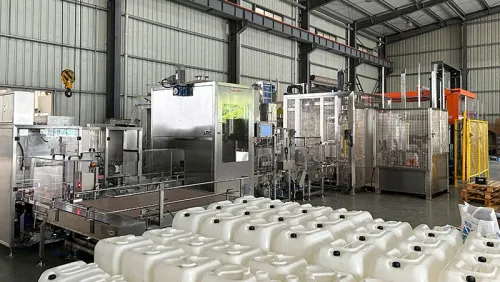

Jerrycan Filling Line
The jerrycan filling line is designed to achieve a fully automated production process, including grouped jerrycan infeed, automatic quantitative filling, capping, servo tracking capping, labeling, weighing, case packing, palletizing, pallet discharge, stretch wrapping or hooding, strapping, and finished pallet conveying out of the production area.
Specifications
- Filling speed: 400-800 containers/hour (depending on material properties, supply pressure and container volume)
- Filling method: gravimetric filling
- Filling accuracy: better than ±0.2% (optimal accuracy 20-40g depending on material properties)
- Filling range: 4-30L (jerrycan)
- Operating temperature: -10℃ to 40℃
- Power supply: 380V, 50Hz (or customized)
- Air supply: 0.4-0.6MPa
- ATEX/EX: applicable
- Equipment dimensions: length is customized according to site layout and empty container buffer requirements
Features
- The jerrycan filling line can accommodate jerrycans of different heights and sizes. Recipe selection through the touch screen allows quick format changeover with minor adjustments at specific stations.
- The jerrycan filling line integrates world-class electrical components to ensure reliability, featuring Siemens PLC and HMI systems, Schneider low-voltage switchgear, Omron or Sick photoelectric sensors, and Pepperl+Fuchs (P+F) proximity switches.
- Multiple safety measures are integrated throughout the line, including emergency stop buttons, safety switches, safety light curtains, and interlocking systems. Safety fencing surrounds the equipment to ensure operation within designated safe zones.
Main Equipment
Empty container mesh belt conveyor, fully automatic jerrycan filling machine, automatic cap placing and tracking capping machine, automatic labeling machine, automatic case packing machine, automatic palletizer, automatic stretch wrapper, etc.
-

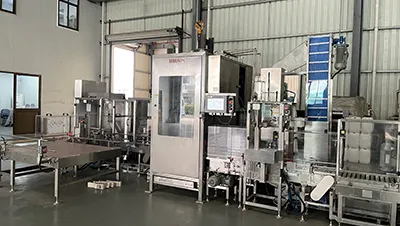

Mesh belt conveyor -

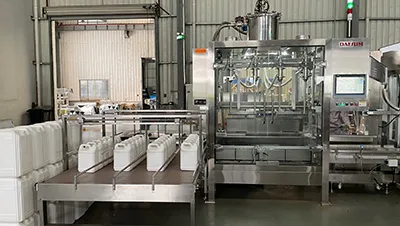

Fully automatic jerrycan filling machine -

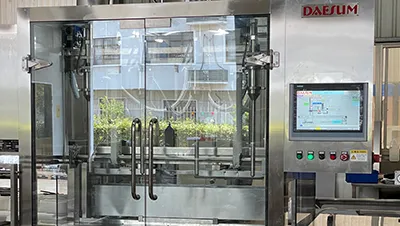

Automatic tracking capping machines -

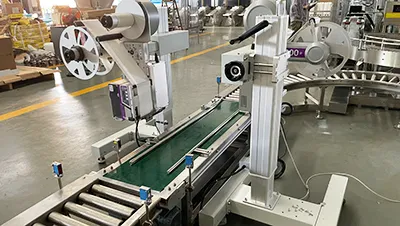

Automatic labeling machine -

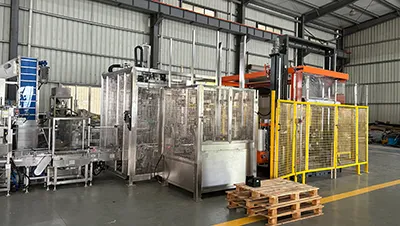

Palletizing and wrapping system
Daesum is a specialized manufacturer of industrial filling equipment and integrated packaging systems. With nearly three decades of expertise, we provide turnkey filling solutions for containers including bottles, drums, pails, jerrycans and IBC totes. Our capabilities extend beyond precision filling to include seamless integration of capping, labeling and palletizing, specifically engineered for the demanding environments of the chemical, food, beverage, lubricants and other industries. At DAESUM, we are committed to delivering reliable, ISO-certified filling and packaging equipment designed for long-term durability and operational efficiency.
