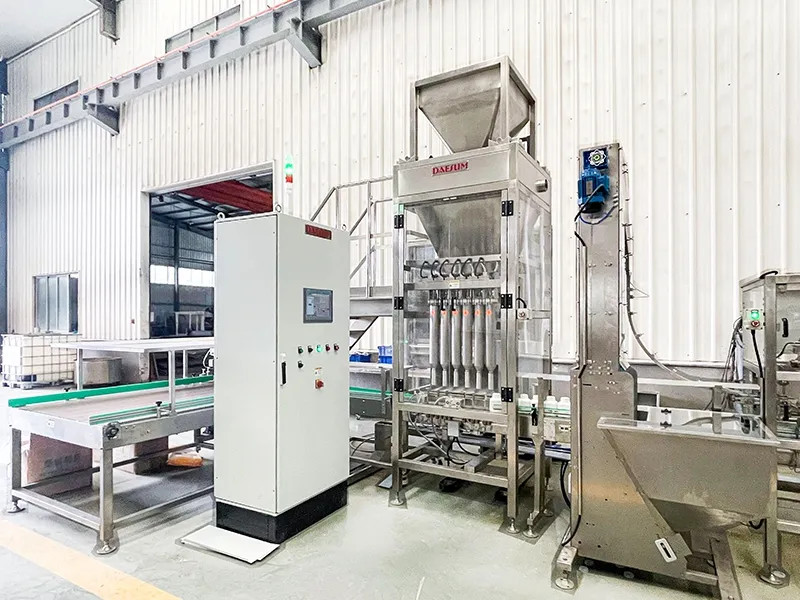

Automatic Bottle Filling Machine
(Powder Filling)
- Filling range 300ml-1L
- Filling speed 800-1500 containers/hour
The automatic bottle powder filling machine is designed for high-precision filling of powder and granular materials into bottles with capacities ranging from 300ml to 1L. The automatic bottle filling machine uses mechanical positioning to achieve automatic alignment and can accommodate different container specifications according to bottle type.
The powder filling machine adopts a vibrating hopper feeding method. After weighing, the material is discharged directly into the container under weight-controlled dosing. It can adapt to various bottle shapes and can be configured according to product properties with explosion-proof motors, gas collection hoods, ventilation and exhaust systems, plastic modular belt conveyor, inkjet printers, labeling machines, case packers, pallet magazines, and palletizers.
- Filling speed: 800-1500 containers/hour (depending on material properties and container volume)
- Filling method: gravimetric filling
- Conveyor type: linear conveyor or triple-station conveyor
- Filling range: 300ml-1L
- Number of filling stations: 6-10
- Max. weighing capacity: 5kg
- Scale interval: 1g
- Filling accuracy: ±0.2%
- Operating temperature: -10℃ to 40℃
- Power supply: 380V, 50Hz (or customized)
- Air supply: 0.4-0.6MPa
- Explosion-proof configuration is optional for operation in hazardous areas and explosive environments
- Equipment dimensions: height not exceeding 3m, length and width are customized according to site layout
- Features a high degree of automation, significantly optimizing labor costs.
- Suitable for bottle sizes from 300ml to 1L, allowing multiple container types to be filled on a single machine.
- Utilizing gravimetric technology, the filling machine ensures high-precision measurement.
- Designed for batch production environments requiring digital management, high safety standards, and environmental compliance.
- Suitable for granular and powder materials, including viscous, toxic, flammable substances.
The system is suitable for high-viscosity materials, toxic and hazardous substances, as well as flammable and explosive products, meeting the operational requirements of controlled and high-risk industrial environments.
