Automatic Drum Filling Machine
(Photoelectric Alignment)
- Filling range 60-220L
- Container type plastic/steel drum

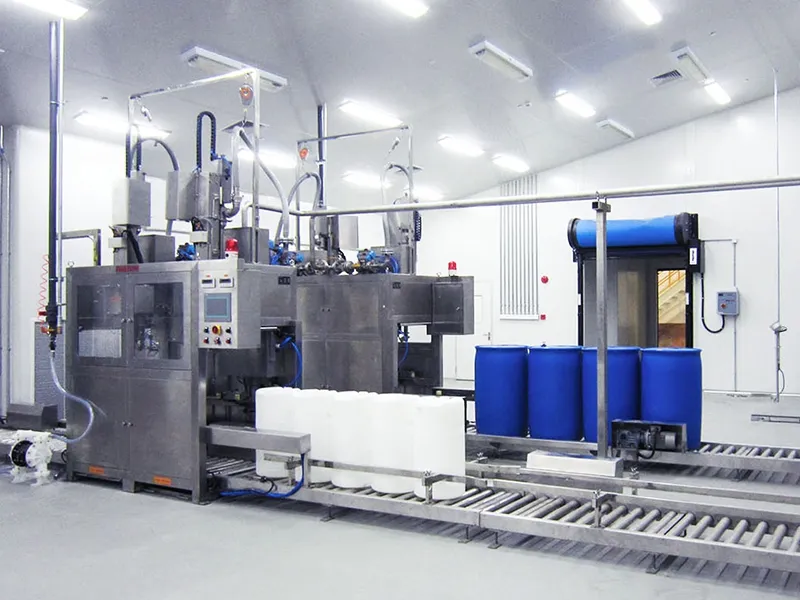

This automatic drum filling machine features a complete process that includes manual loading, automated conveying, precision quantitative filling, and drum outfeed.

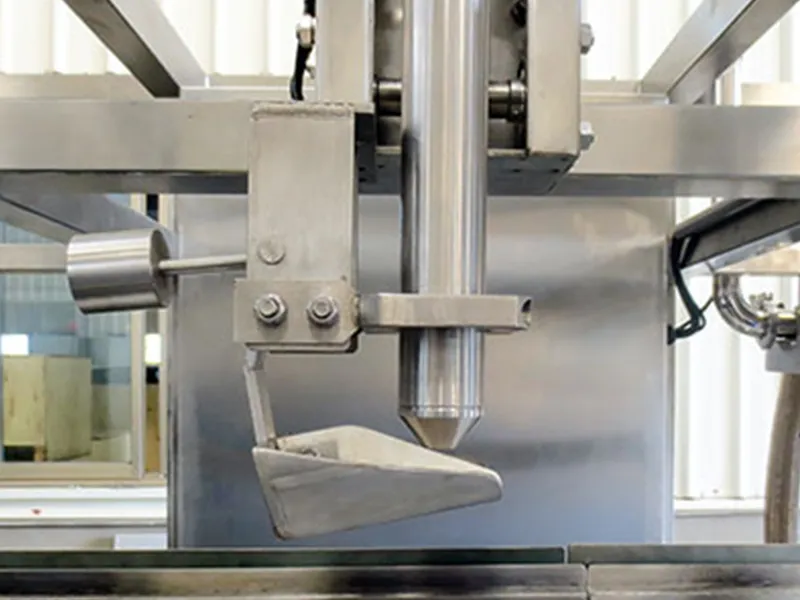

Featuring photoelectric alignment technology, the filling lance moves to locate the bunghole while the drum remains positioned, ensuring high adaptability to various drum sizes via its variable movement radius. As the movement radius of the lance is adjustable, the system is compatible with a wide range of drum types.

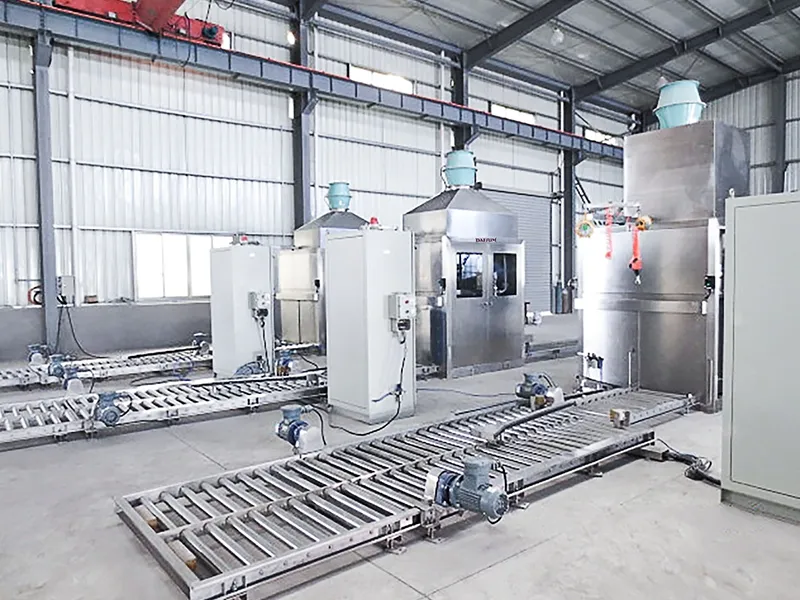

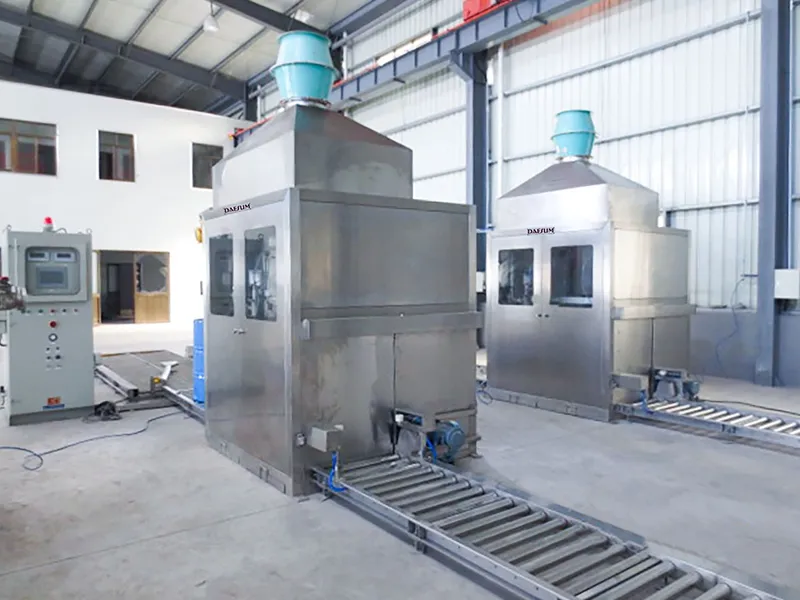

The infeed and outfeed conveyors are powered roller conveyors with optimized length for efficient handling. Custom options include explosion-proof motors, vapor extraction systems, and manual capping or crimping tools.
- Filling speed: 100-120 drums/hour (60L per drum), 35-40 drums/hour (200L per drum), depending on material properties and supply pressure
- Filling range: 60-220L
- Container type: plastic/steel drum
- Number of filling stations: 1-2
- Filling method: gravimetric filling
- Max. weighing capacity: 300kg
- Scale interval: 100g
- Filling accuracy: ±0.2%
- Conveyor type: linear conveyor
- Operating temperature: -10℃ to 40℃
- Power supply: 380V, 50Hz (or customized)
- Air supply: 0.4-0.6MPa
- Equipment dimensions: length is customized according to site layout, standard depth approx. 1.6m, height not exceeding 3m
- Explosion-proof configuration is optional for operation in hazardous areas and explosive environments
- Automatic feeding: Yes
- Automatic bunghole positioning: Yes
- Automatic cap loosening: No
- Automatic quantitative filling: Yes
- Automatic capping/tightening: No
- Automatic labeling: No
- Automatic palletizing/wrapping: No
- Flammable & explosive: Applicable
- Toxic & hazardous: Applicable
- High viscosity: Applicable
- Highly corrosive: Applicable
- Volatile: Applicable
- Easily solidifying: Applicable
- Conveyor system: Optional
- Empty container store warehouse: Optional
- Cartesian palletizer (gantry palletizer): Optional
- Labeling machine: Optional
- Cap organizing & capping machine: Optional
- Stretch wrapping machine: Optional
- Optimized for cost-efficiency with a minimal footprint
- Featuring a rotating electromechanical lance for superior alignment stability; seamlessly handles 60L-220L drum varieties on a single integrated line.

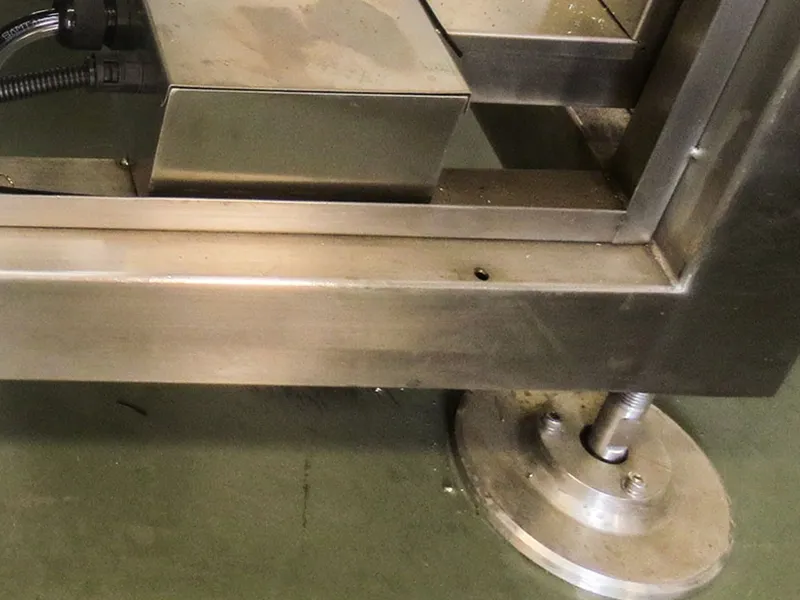

- Integrated forklift-ready chassis allows for rapid relocation and flexible production floor reconfiguration.
- Ideal for operations with relatively low annual output and multiple drum specifications
- Delivers a robust 100-120 units/hr (standard); maintains a steady 35-40 units/hr for heavy-duty 200L drums.
Suitable for automatic alignment and quantitative filling of lubricating oil, antifreeze, adhesives, cleaning liquids, detergents and various chemical products. The filling machine is capable of handling high-viscosity materials, toxic or hazardous substances, as well as flammable and explosive liquids in demanding industrial environments.
