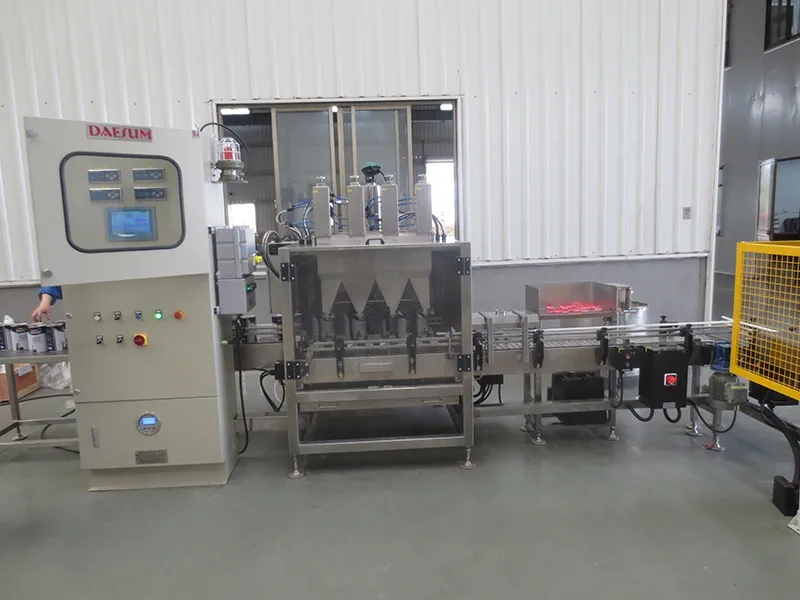

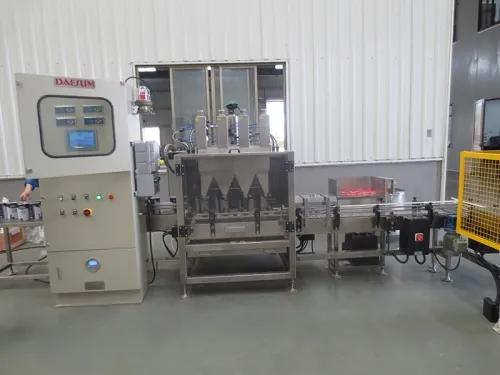

Automatic Tin Can Filling Machine
- Filling range 1-10L
- Filling speed 500-700 containers/hour

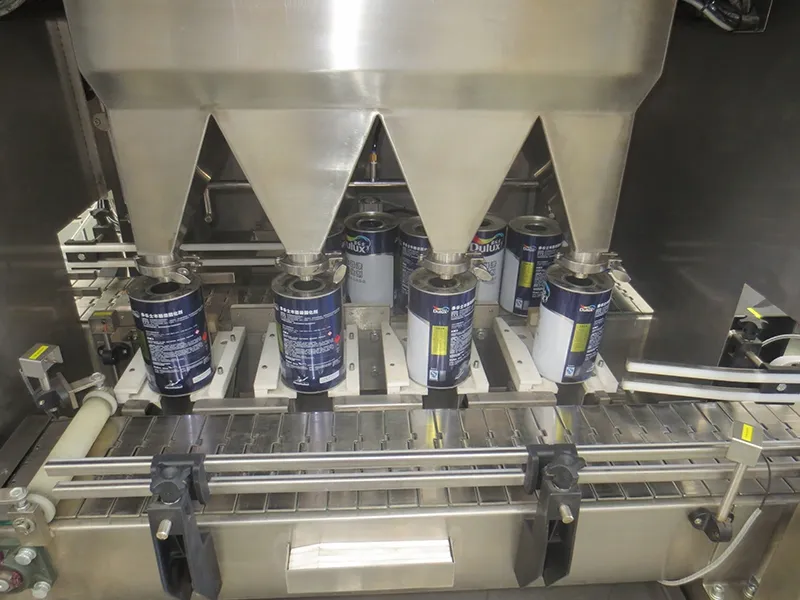

The automatic tin can filling machine is engineered for high-precision filling of metal containers with capacities ranging from 3L to 40L. By utilizing mechanical positioning, the automatic filling machine achieves precise alignment and can be adjusted to meet various container specifications based on the specific can profile.
To enhance production versatility, the tin can filling machine can be configured with a dual-nozzle system, enabling the simultaneous filling of two different products within a single unit. The lid pressing module of the automatic tin can filling machine is specifically designed for high compatibility, supporting both lug lids and standard press lids to ensure a reliable seal across different packaging formats.
For specialized operational needs, the automatic filling machine offers optional integration with explosion-proof motors, fume collection hoods, vapor extraction systems, plastic modular belt conveyor, inkjet printers, labeling machines, pallet magazines, and palletizers.
- Filling speed: 500-700 containers/hour (depending on material properties, supply pressure, and container volume)
- Filling method: gravimetric filling
- Conveyor type: linear conveyor or triple-station conveyor
- Filling range: 1-10L
- Number of filling stations: 4-6
- Max. weighing capacity: 40kg
- Scale interval: 10g
- Filling accuracy: ±0.2%
- Operating temperature: -10℃ to 40℃
- Power supply: 380V, 50Hz (or customized)
- Air supply: 0.4-0.6MPa
- Explosion-proof configuration is optional for operation in hazardous areas and explosive environments
- Equipment dimensions: customized to site layout, height not exceeding 2m (if configured with robotic system and pail destacking unit, height not exceeding 3m)
- Features a high degree of automation, significantly optimizing labor costs.

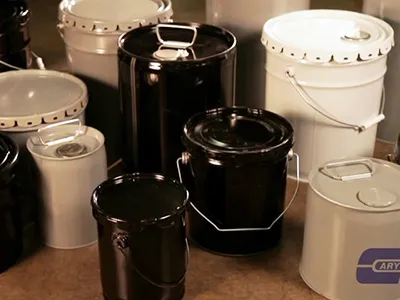

- Supporting a wide capacity range from 3L to 40L, the automatic tin can filling machine enables multi-container compatibility on a single production platform.
- Engineered for high annual production volumes and is specifically optimized for toxic, hazardous, high-temperature, and high-viscosity chemical media.
The filling machine is suitable for high-viscosity materials, toxic and hazardous substances, and flammable or explosive products in controlled industrial environments.
